5 Axis CNC Machining

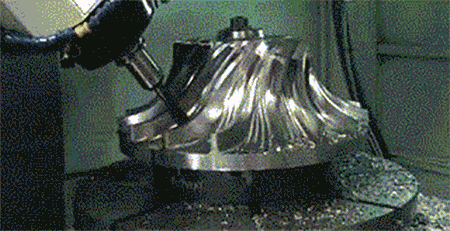

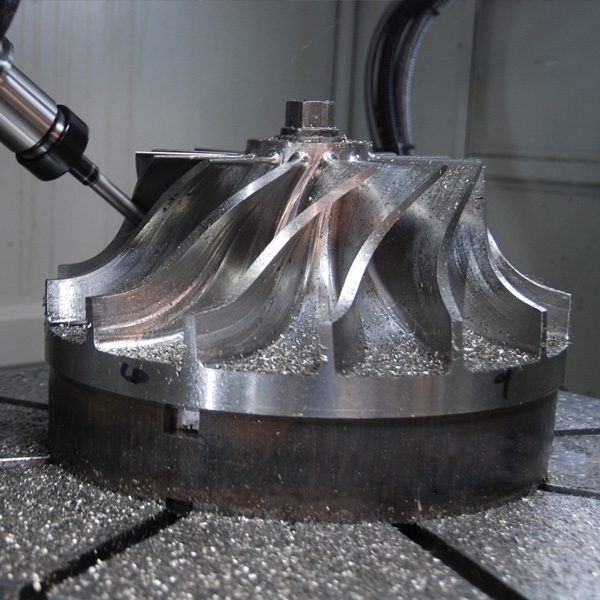

5-axis machining offers three linear axes and two rotational axes that work simultaneously to achieve complex surface machining. A 5-axis machine helps you work on tighter tolerances to achieve complex geometries while a 3+2 system allows you to hold your less complex parts in positions that allow better access to the features.5-axis machining helps in the cost effective manufacturing of sophisticated design.
From Concept to Production
We can machine virtually any engineering material, including plastics, metals and more.Whether you‘re a large corporation or a small business, we will work in a collaborative manner with you to ensure high quality.Taking your concept and turning it into reality, upload your drawings, start your free project review!
CNC Machining Service
IN YS MODEL, we use advanced equipment to offer you a variety of CNC machining services including milling, turning, EDM and wire EDM, surface grinding and much more. Using our imported 3, 4 and 5-axis CNC machining centers, our skilled machinists can make turned and milled parts using a wide range of plastic and metal materials.
Whether you require a one off model for fit and function, a small batch run for marketing and testing or low volume production QiChuang has the solution for you.
CNC Machining Materials
Metal : Kovar, Steel, aluminum, stainless steel, brass, copper, titanium etc.
Plastic :Acrylic Liquid crystal polymer Long-fiber reinforced plastics Noryl (PPO and PS) Polysulfone, PC, PET, PE, PPS, PP, PS, PU, PBT, PEI, Peek , PTE, PVC etc.
Contact us to know more about materials
CNC Milling
CNC milling is used to apply a machined surface finish on plastic or metal or for creating complex 3D shapes.
CNC Turning
Our CNC lathes enable high speed and quality turning of both plastics and metals. The turning process allows for complex external geometries and internal bores to be generated. Our turning capacity is available for prototypes through to low-volume production.
EDM / Wire EDM And Surface Grinding
EDM (electrical discharge machining) is a method for cutting pockets, holes, and other shapes into hardened steel, as well as imparting a surface texture to the internal cavities of mold tools. A sacrificial electrode in an electrolyte bath discharges a high-powered electric spark to erode very hard materials that would be difficult or impossible to do with any other method. Square pocket holes are often created with this method.
With wire EDM, a copper wire is continuously fed between two spools. When electrically charged, it’s able to cut through hardened tool steels quickly and accurately.
At QICHUANG, we also offer surface grinding services. When surface grinding the work piece is held stationary on a horizontal plate. The surface grinding wheel is computer controlled to abrade the work piece to a precise depth.
Finishing Services
Our engineers are experts in achieving the perfect finish for your product. With painting, vapor polishing, sanding, anodizing and many other services to choose from, you can create the exact look you want.
Anodizing, Painting, Pad Printing, Color Matching, Sanding and Polishing, Vapor Polishing, Blasting
For instant quote please send your 3D drawings to goldscales@outlook.com we will get back to you within 12 hours
